How to add Padlet to Brightspace LMS using LTI 1.0?

Deprecation notice: LTI 1.0 will no longer be supported by IMS Global from June 2022 onwards. We do not offer this connector for new users. Existing users should migrate to the new LTI 1.3 standard.

There are two different types of integrations for LMS available in Padlet, namely LTI 1.0 and LTI 1.3. For the LTI 1.0 tool, each Padlet board has to be added individually as an external tool in each individual assignment using ALL of the respective steps below.

This article will describe how to connect Padlet to Brightspace using LTI 1.0. If your Brightspace version supports 1.3, you may use our new connector described in this article.

You will need:

  • Access to administrator account on Brightspace
  • Access to teacher account on Padlet Backpack

Set up LMS integration for Brightspace (Admins)

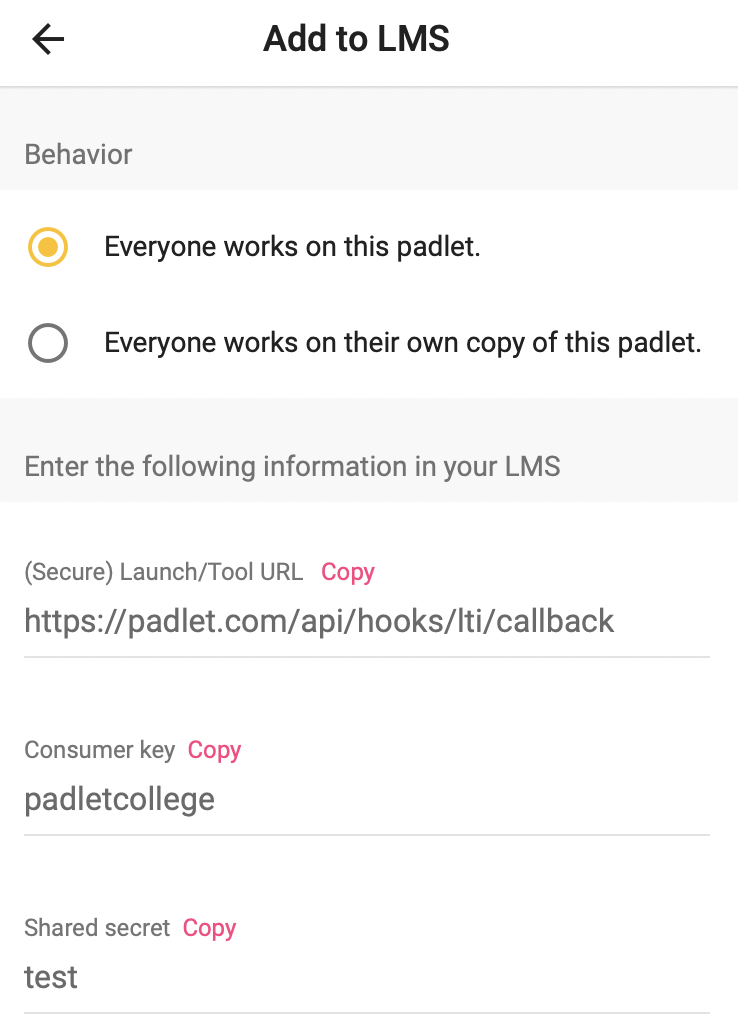

  1. Padlet details
    Open a Padlet board you want to add on Padlet and click on Share. You should see the option to "Add to your LMS as an external tool". Go ahead and click on that. Take note of your Consumer key and Shared secret and share it with your Brightspace administrator.
  1. Add Padlet as a Tool Provider

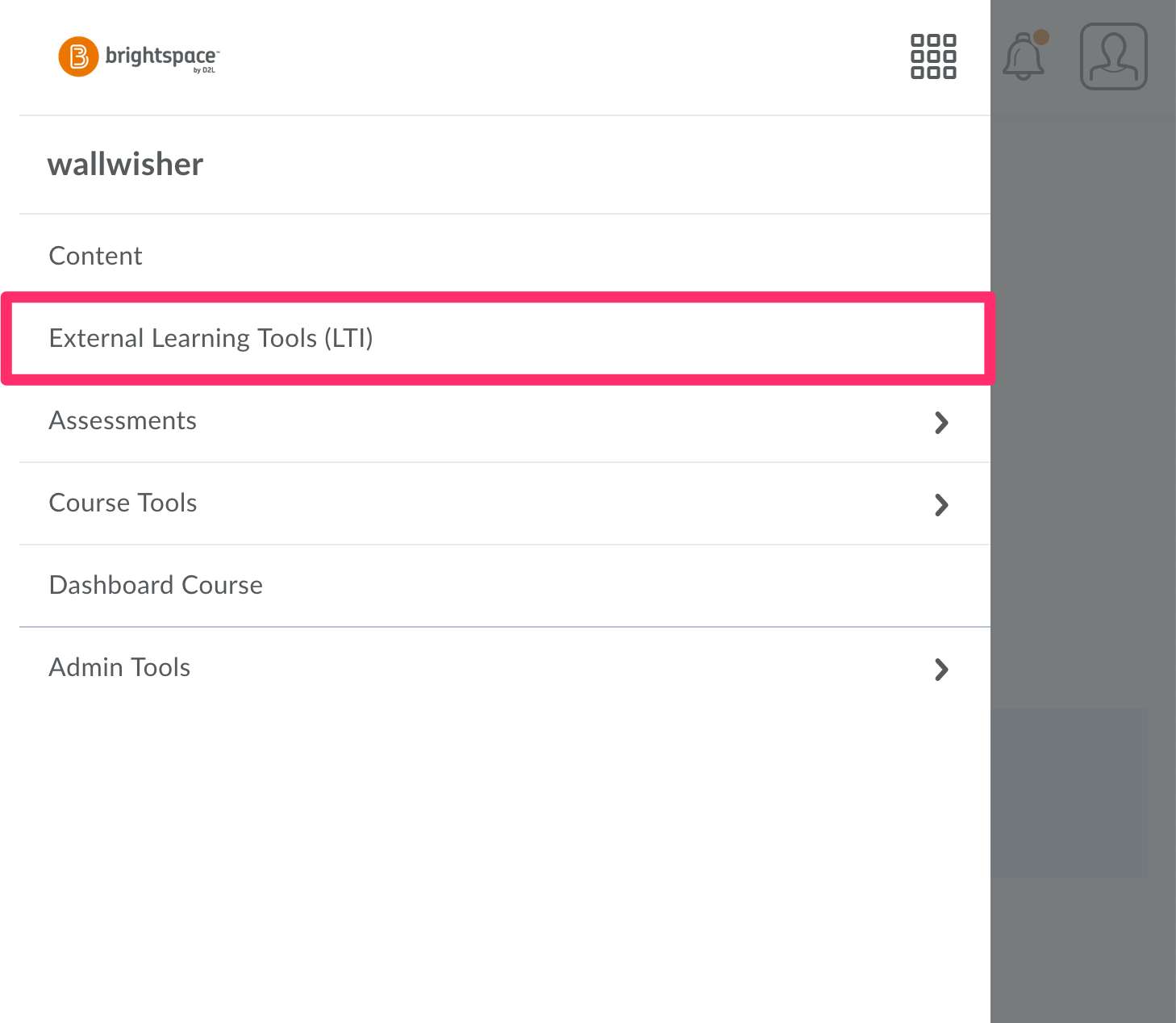

Go to External Learning Tools (LTI) > Manage Tool Providers > New Link

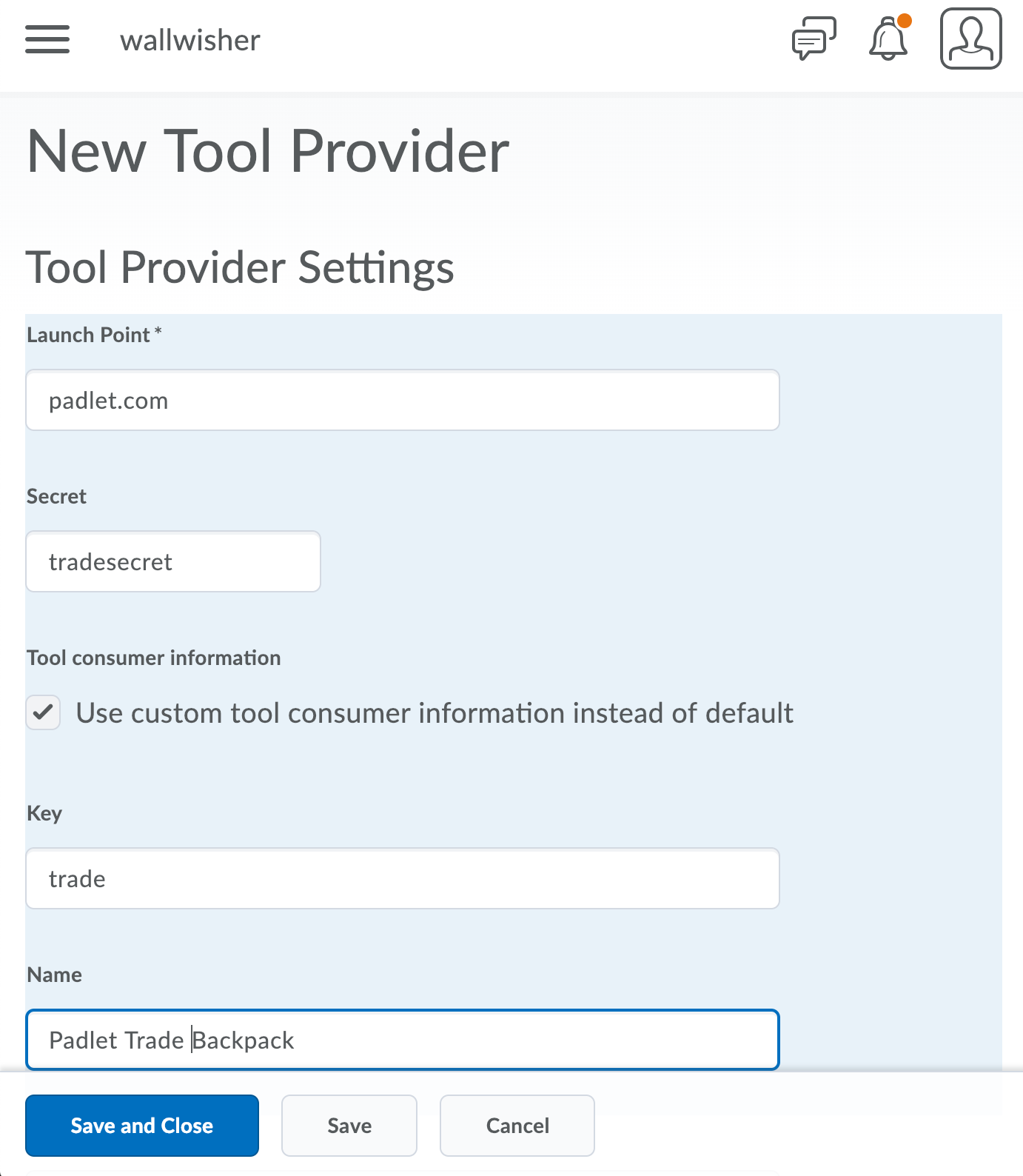

  1. Enter the Consumer Key and Shared Secret that was shared

Be sure to check "Use custom tool consumer information instead of default"

  1. Enter Tool details

Field

Information to be entered

Launch point

https://padlet.com/api/hooks/lti/callback

Version

Inherit Global (1.1)

OAuth Signature Method

HMAC-SHA1

Secret

Listed on Padlet as Shared secret

Key

Listed on Padlet as Consumer key

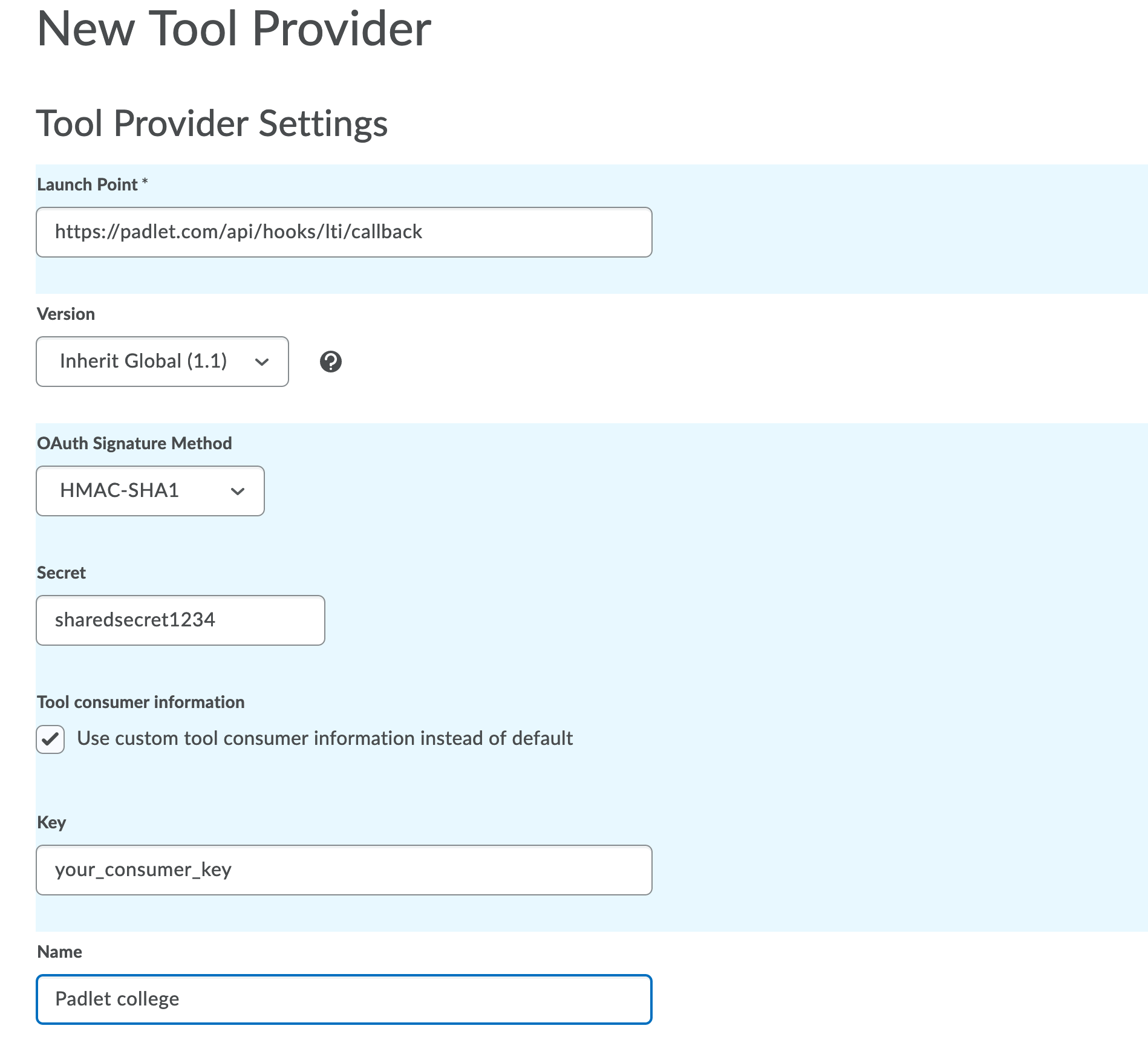

Here is a sample screenshot with filled fields.

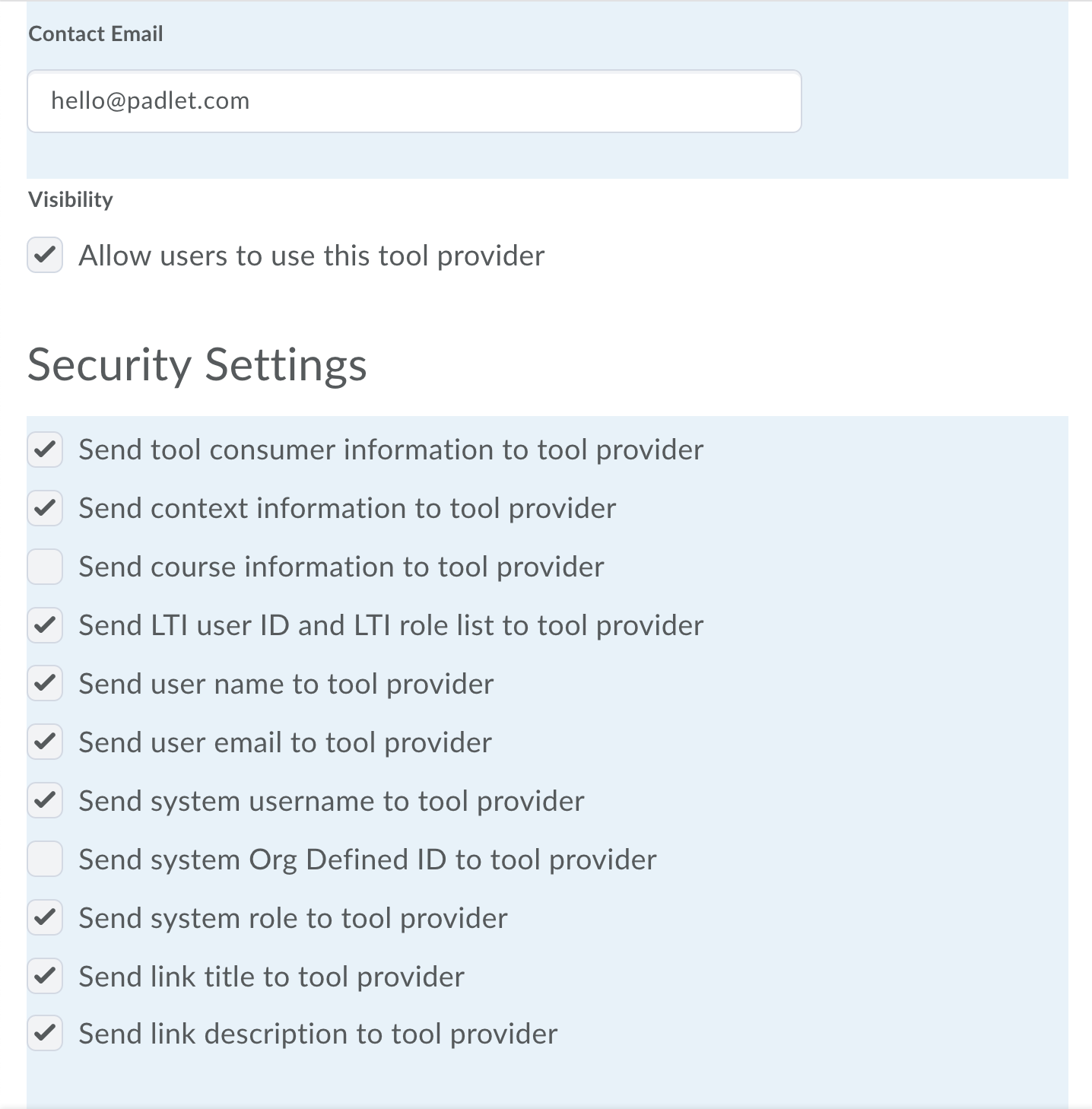

  1. Change security settings

This is to allow Padlet to be visible to all users. Use the same security settings as those seen below:

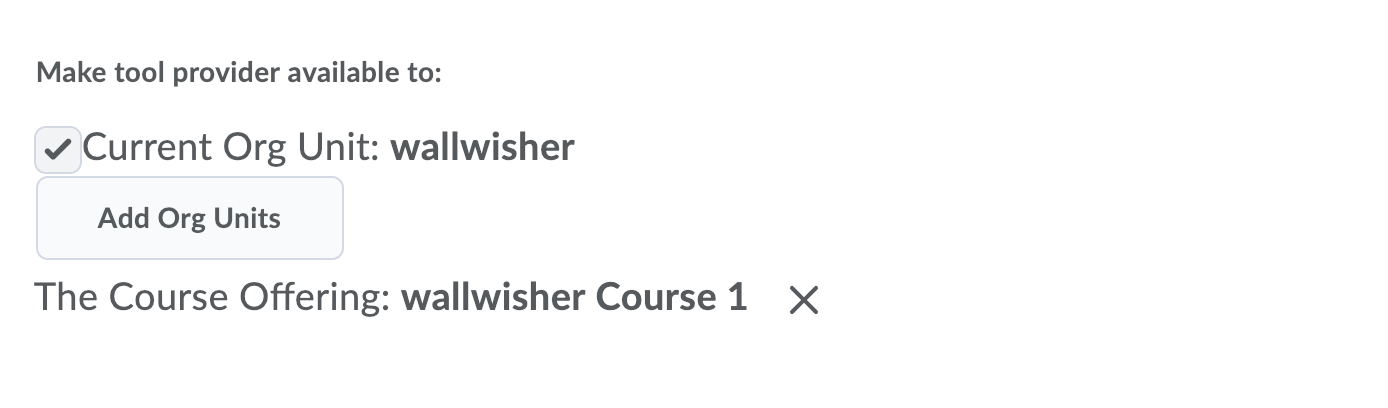

  1. Add Org Units

Change the org units that can use the tool provider. Now you can Save and close the tool provider.

Add Padlet to Brightspace Modules (Teachers)

  1. Go to External Learning Tools (LTI)

Go to Manage External Learning Tool Links > New Link

  1. Padlet details
    Open a Padlet board you want to add on Brightspace and click on Share. You should see the option to "Add to your LMS as an external tool". Go ahead and click on that. You'll be presented with some information that you'll need to copy and paste into Brightspace.
  2. Course details

Fill in the fields accordingly:

Title

Padlet 1.0 - Assignment (use a name that will help you easily identify it later)

URL

https://padlet.com/api/hooks/lti/callback

Visibility

Select Allow users to view this link

Key/Secret

Select Sign messages with key/secret with and Tool consumer key/secret

Custom Parameters

Listed on Padlet as Custom parameters

Break each line into its components separated by the "=" sign. For example, if the Custom Parameters in the panel on Padlet look like this:

public_key=beefcafe123
remake=yes

You'll need to add 2 custom parameters to the form: the first custom parameter should be "public_key" and its value "beefcafe123" (similar to the image below). If you have chosen to let users work on their own padlets, the second line needs to be "remake" and its value "yes".

Security settings

Select Use tool provider security settings

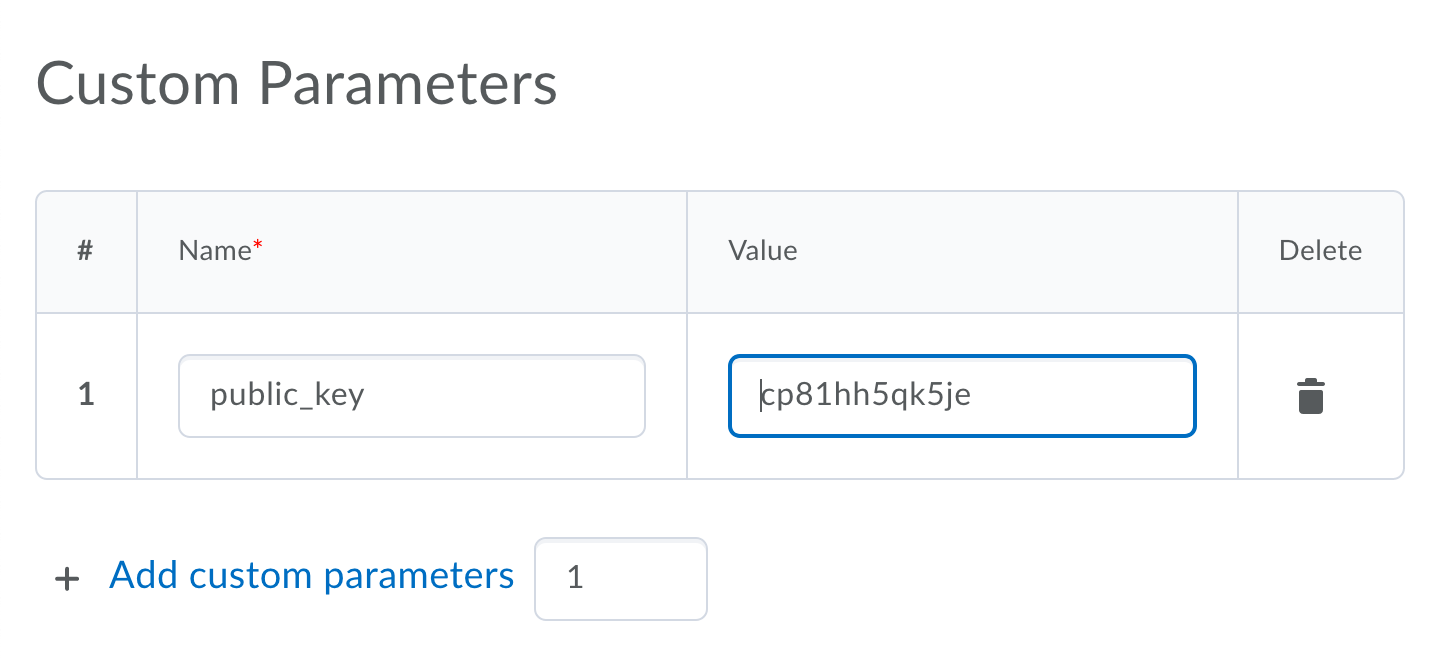

Here's an example of how to break up a custom parameter:

Once done, click on Save and Close.

  1. Head to course content
    Content > Select a Module or Add a Module > Existing Activities. Search and select Padlet (or the name you've given it in step 9) from the "External Tool Activity" menu.

The Padlet should show up like this on Brightspace!
